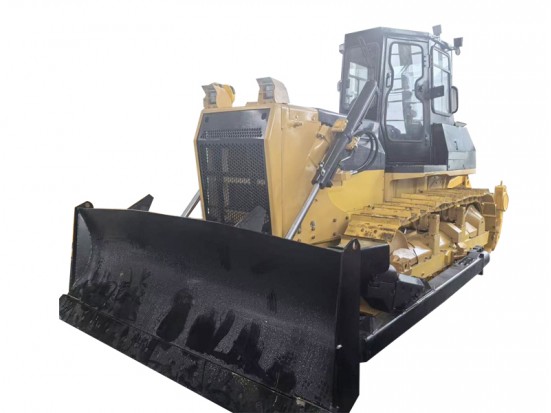

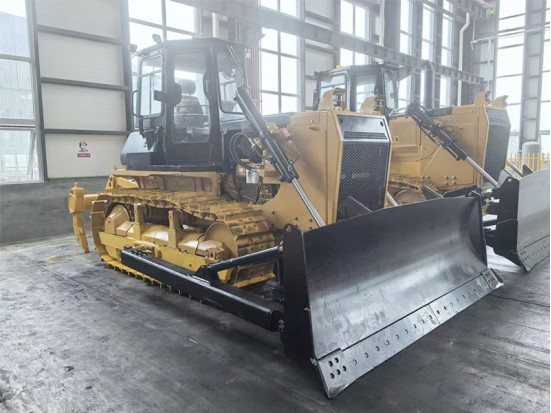

D18 |
D18L(Super Wetlands) |
|
Engine |
|
WD10G178E25 |
|
|
Rated power/speed |
KW(HP)/rpm |
131（180）/1850 |
|
|
Emission standards |
|
T2 |
|
|
Working mass |
KG |
16400 |
18400 |
|
Working mass (with looser) |
KG |
18800 |
|
|
Ground Specific Pressure |
Kpa |
66 |
25 |
|
Overall dimensions |
|||
|
Total length |
mm |
4990 |
5262 |
|
Total Width |
mm |
3440 |
4150 |
|
Total Height |
mm |
3110 |
3074 |
|
Traveling performance |
|||
|
Forward speed |
Km/h |
F1:0-3.3 |
|
|
F2:0-5.8 |
|||
|
F3:0-9.6 |
|||
|
Backward speed |
Km/h |
R1:0-4.3 |
|
|
R2:0-7.6 |
|||
|
R3:0-12.5 |
|||
|
Climbing ability |
° |
30 |
|
|
Min. Ground Clearance |
mm |
400 |
495 |
|
Chassis system |
|||
|
Track center distance |
mm |
1880 |
2300 |
|
Track plate width |
mm |
510 |
1100 |
|
Ground length |
mm |
2430 |
2935 |
|
Fuel tank capacity |
|
|
|
|
Fuel tank |
L |
315 |
|
|
Working hydraulic oil tank |
L |
108 |
|
|
Working device |
|||
|
Blade type |
|
Straight tilting shovel |
|
|
Blade Depth |
mm |
540 |
485 |
|

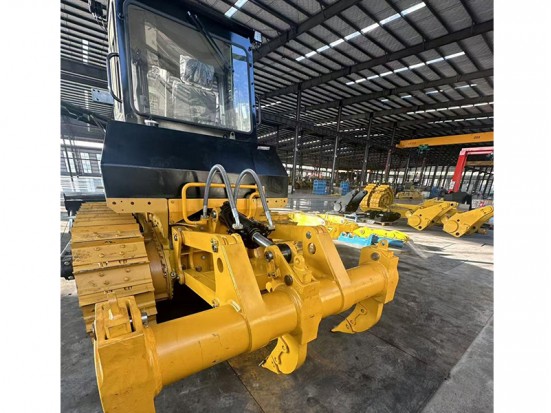

Loader type |
|
Triple-tooth |
—— |
|
Loosening depth |
mm |
570 |
—— |
